3M™ VHB tapes

VHB (Very High Bond) double-sided adhesive tapes are a cross-linked, closed-cell acrylic mass, characterized by high conformability. The viscoelastic nature of these belts guarantees a damping of vibrations and fatigue stresses. The VHB acrylic foam tape allows permanent application, high resistance to temperature and UV, greater reliability, durability and quality than many other fixing and mounting methods. Ideal for both indoor and outdoor applications.

What are the different types of 3M™ VHB tapes available?

Different Types of 3M™ VHB Tapes

3M™ VHB (Very High Bond) tapes are available in a wide range of types, each engineered for specific substrates, environmental conditions, and application requirements. The main distinctions between types relate to their adhesive formulation, foam core properties, thickness, and color. Below is an overview of the most notable 3M™ VHB tape types and families:

Popular 3M™ VHB Tape Families and Types are:

- 4941 Family:

  Designed for bonding high and medium surface energy materials, with excellent conformability and plasticizer resistance. Includes tapes like 4926, 4936, 4941, 4956, and 4991. Available in various thicknesses and colors (gray, black).

- 5952 Family:

  Features a modified acrylic adhesive for strong bonds to high, medium, and low surface energy substrates (including many plastics and powder-coated paints). Highly conformable, available in black or white. Common products: 5952, 5962, 5925.

- 4950 Family:

  General-purpose, white VHB tapes for bonding metals, glass, and high surface energy plastics. Includes 4950, 4951, 4952, and 4959, with varying thicknesses.

- 4611 Family:

  Dark gray tapes designed for bonding metals and for use in high-temperature paint oven processes. Includes 4611, 4622, 4624, and 4618.

- 4910 Family:

  Clear VHB tapes for bonding transparent materials such as glass and acrylic. Popular for aesthetic applications where a nearly invisible bond is desired.

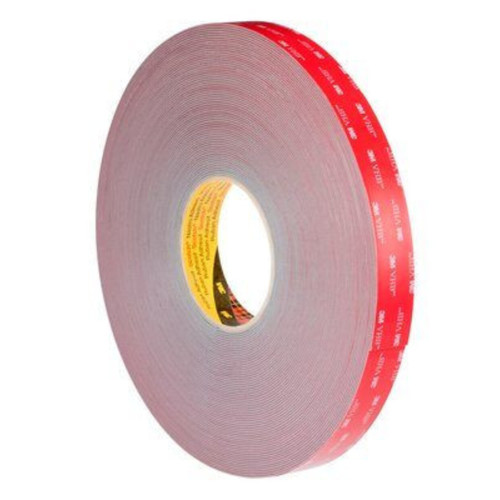

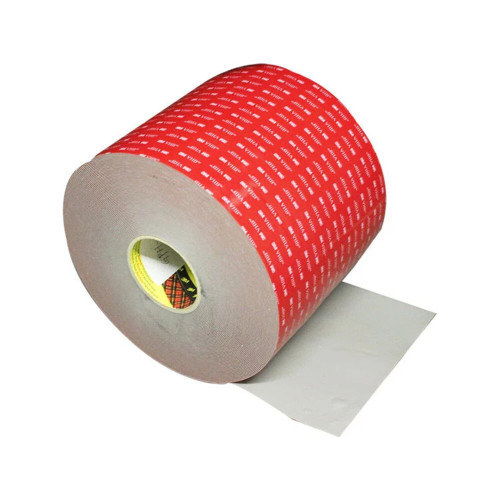

- GPH (General Purpose High Temperature) Series:

  Designed for high-temperature resistance, suitable for bonding metals before powder coating or paint oven cycles.

- LSE Series:

  Specifically formulated for bonding low surface energy plastics and difficult substrates, such as polypropylene and powder-coated surfaces.

Specialty and Additional Types:

- Extrudable VHB Tapes:

  For automated applications and unique shapes, such as 3M™ VHB™ Extrudable Tape GP.

- Thin and Ultra-Thin VHB Tapes:

  For applications requiring minimal thickness, such as 5906F (0.15 mm) and 5915F (0.4 mm).

Summary Table of Common 3M™ VHB Tape Types

- 4941 Family: High/medium surface energy, conformable, plasticizer resistant

- 5952 Family: High/medium/low surface energy, highly conformable

- 4950 Family: General purpose, metals, glass, HSE plastics

- 4611 Family: High-temp, metals, paint oven processes

- 4910 Family: Clear, transparent bonding

- GPH Series: High-temp, general purpose

- LSE Series: Low surface energy plastics

How to Choose the Right 3M™ VHB Tape:

Selection depends on:

- Substrate type (metal, plastic, glass, painted surface)

- Surface energy of the materials

- Environmental exposure (temperature, UV, moisture)

- Desired thickness and color

- Special requirements (clarity, flexibility, resistance to chemicals or plasticizers)

3M™ provides datasheets and selection guides to help match the right VHB tape to your specific application.

3M™ VHB tapes are available in many families and formulations, each tailored to different bonding challenges and industries, from electronics and automotive to construction and signage.

How does 3M™ VHB tape handle bonding between dissimilar materials?

3M™ VHB tape excels at bonding dissimilar materials due to its unique viscoelastic acrylic foam core and advanced adhesive properties. Unlike mechanical fasteners, which join materials at a single point, 3M™ VHB tape distributes stress evenly across the entire bonded area, creating a strong, durable, and virtually indestructible bond between different substrates.

Key ways 3M™ VHB handles bonding between dissimilar materials:

- Stress Distribution: The tape spreads loads across the full joint, reducing localized stress and the risk of material failure, especially important when joining materials with different mechanical properties.

- Viscoelastic Conformability: Its foam core absorbs dynamic loads and accommodates differential expansion and contraction, which is common when bonding materials like metals and plastics that react differently to temperature changes.

- Barrier Against Galvanic Corrosion: When joining dissimilar metals (e.g., aluminum to steel), 3M™ VHB tape acts as a physical barrier, preventing direct metal-to-metal contact and thus inhibiting galvanic corrosion.

- Surface Adaptability: The tape adheres well to a wide range of substrates, including metals, plastics, glass, and composites—even those with varying surface energies—allowing for reliable bonds between materials that are otherwise difficult to join.

- Environmental Resistance: 3M™ VHB tape maintains its bond strength and flexibility across a wide temperature range and resists moisture, UV, and chemicals, ensuring long-term durability even when different materials expand or contract at different rates.

3M™ VHB tape enables strong, permanent, and flexible bonds between dissimilar materials by providing even stress distribution, accommodating movement, preventing corrosion, and maintaining performance in harsh environments.

Can 3M™ VHB tape be used in extreme temperature conditions?

Yes, 3M™ VHB tape can be used in extreme temperature conditions. Once properly applied and fully bonded, most 3M™ VHB tapes maintain their adhesive strength and elasticity across a wide temperature range, typically from -40°C to 90°C for standard grades. Some specialized VHB tapes, such as the GPH (General Purpose High Temperature) series, offer even greater resistance, withstanding short-term exposure up to 232°C (450°F) and long-term exposure up to 149°C (300°F).

For best results, VHB tape should be applied within the recommended temperature range—generally 21°C to 38°C (70°F to 100°F)—to ensure optimal adhesion during the initial bonding process. After application and full cure, the bond remains stable and reliable even in both extreme cold and heat, making 3M™ VHB tapes suitable for demanding environments such as automotive, electronics, construction, and outdoor applications.

3M™ VHB tape is engineered to perform in extreme temperature conditions, provided it is applied correctly and allowed to cure at recommended temperatures.
