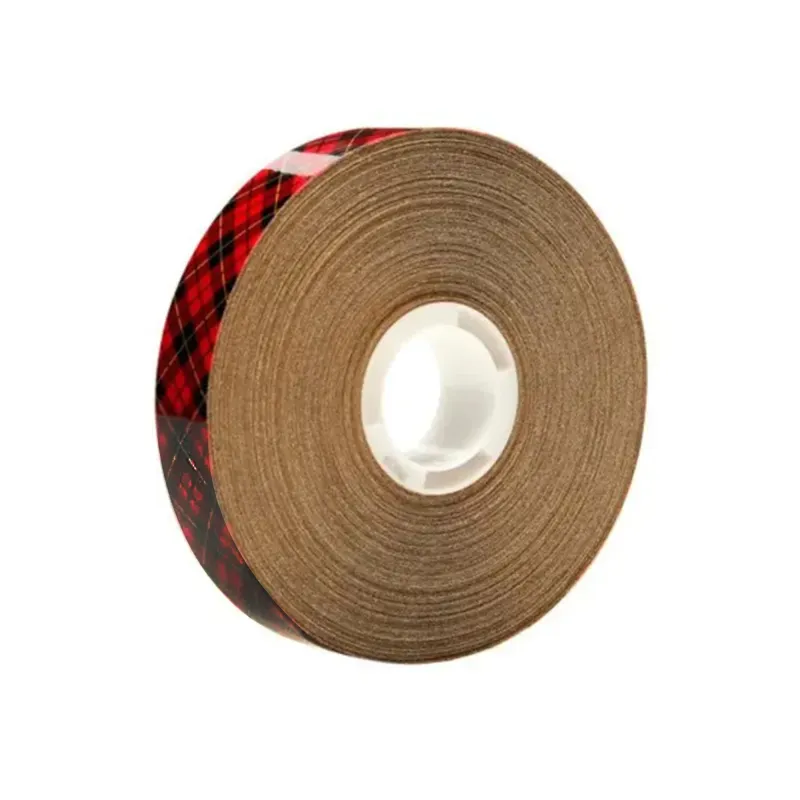

3M ATG 926 acrylic transfer tape - 12 mm x 33 m - 0.13 mm

General Information

• ATG tapes are a reverse wound version of standard 3M Adhesive Transfer and Double Coated tapes for use in the Scotch® ATG hand-held dispensers.

Comparable 3M tape is 3M ATT Tape 9485

Note: The user should carefully evaluate the product under actual use conditions to determine whether it is fit for a particular purpose and suitable for the user’s method of application.

Technical Information Note

The following technical information and data should be considered representative or typical only and should not be used for specification purposes.

Typical Physical Properties

Property Values

Color Clear

Total Tape Thickness without liner 0.13 mm 5 mil

Adhesive *350

Release Liner Tan Paper *DK with Red Plaid Leader

Liner Thickness 0.10 mm 4 mil

*Note

*DK = densified kraft

Adhesive System 350 is a firm acrylic pressure-sensitive adhesive system. It features very high adhesion to a variety of surfaces, excellent shear holding power, high temperature resistance and excellent UV resistance.

Typical Performance Characteristics

Relative High Temperature Operating Ranges Test Condition

232 °C 450 °F Short Term (minutes, hours)

149 °C 300 °F Long Term (days, weeks)

Property: Relative High Temperature Operating Ranges
