3M™ GPT-020F Double-Coated Tape features a 200-micron thick, solvent-free, clear modified acrylic adhesive. It combines high peel and shear strength, providing strong adhesion to a wide variety of substrates, both high and some low surface energy substrates.
High temperature resistance: 190°C (300°F) short-term and 90°C (200°F) long-term.
Features a printed white PP liner.

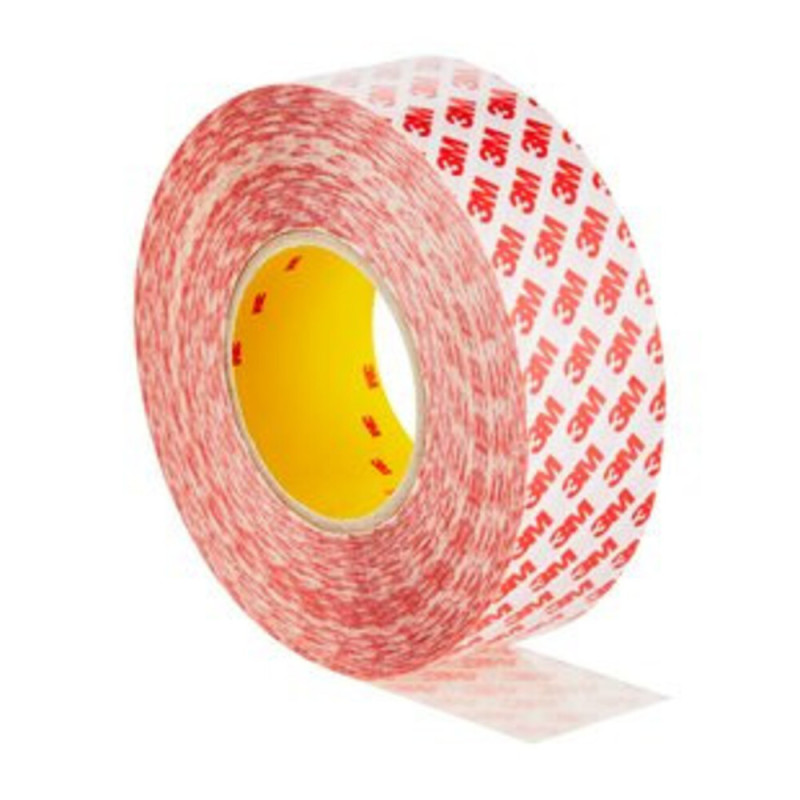

3M™ GPT-020F High Performance Double Coated Tape, clear, 9 mm x 50 m thickness 0.202 mm
€5.84
3M™ GPT-020F Double-Coated Tape features a 200-micron thick, solvent-free, clear modified acrylic adhesive. It combines high peel and shear strength, providing strong adhesion to a wide variety of substrates, both high and some low surface energy substrates.
High temperature resistance: 190°C (300°F) short-term and 90°C (200°F) long-term.
Features a printed white PP liner.
Shipping Exworks. To arrange transportation, check the technical documents of the product
100% secure payments
3M GPT-020F is a high-tack, double-coated tape, an extremely versatile solution for industrial applications.
3M GPT-020F is a double-coated tape with a polyester backing and a modified acrylic pressure-sensitive adhesive, designed to offer high adhesion to a wide range of materials, both high and low surface energy.
It is an extremely versatile solution for industrial applications where a balance between performance, low thickness, and ease of use is required.
Key Features
Recommended for:
- Typical industrial applications
- Signage and displays (POS)
- Plastic and metal assembly
- Laminating and material coupling
- Packaging and splicing
- Furniture and decorative components
- Sealing profiles and cable ducts
- Attaching decorative trims and emblems
It is a universal tape for industry and converting
Choose 3M™ GPT-020F if you need:
- A high-performance, multipurpose tape
- Good adhesion on HSE and LSE (metal, plastic, glass)
- Thin gauge (0.2 mm)
- Excellent workability for die-cutting and converting
- Temperature and humidity resistance
Technical features and benefits for industrial applications
Adhesion to HSE + LSE (key advantage)
- Metals
- Glass
- Even difficult-to-bond plastics
A single tape for many applications
High initial tack
- Immediate adhesion
- Reduces assembly times
Stable polyester backing that ensures:
- Dimensional stability
- Ease of processing
- Cutting precision
Ideal for converting and die-cutting
Temperature resistance up to approximately:
- 149ºC (300ºF) short-term
- 93ºC (200ºF) long-term
Suitable for industrial processes
Moisture resistance
- Thanks to the polypropylene liner
Technical specifications
| Property | Value |
| Type | Double-sided tape with modified acrylic adhesive |
| Core | Polyester |
| Liner | White polypropylene liner |
| Color | Transparent |
| Total thickness | 0,202 mm |
| Temperature resistance | 149ºC (300ºF) short-term. 93ºC (200ºF) long-term |
| Application temperature | Recommended room temperature (16ºC to 30ºC) for best results |
3M™ GPT-020F Material Compatibility
3M™ GPT-020F adheres effectively to:
- Aluminum
- Stainless steel
- Steel
- Polyethylene terephthalate (PET)
- ABS
- PVC
- Some LSE plastics
- Glass
- Paper
- Cardboard
Frequently Asked Questions (FAQ)
Q: Can 3M™ GPT-020F replace VHB tapes?
A: No, they are products for different purposes. 3M GPT-020F is ideal for precision assemblies and graphic fastenings where minimal thickness is required. 3M™ VHB™ tapes, on the other hand, are made of much thicker, closed-cell acrylic foam and are designed to replace mechanical fastenings (rivets, screws, welds).
Q: On which surfaces is 3M™ GPT-020 tape most effective?
A: 3M GPT-020 is a universal double-sided adhesive designed to bond to a wide range of materials, including high and low surface energy (HSE and LSE) materials. It is ideal for metals, glass, many plastics (such as ABS and polypropylene), and powder-coated surfaces.
Q: What's the difference between 3M™ GPT-020F and 3M™ GPT-020P?
A: The main difference is the liner: GPT-020F uses a polypropylene film liner, while GPT-020P uses a polyethylene-coated kraft paper liner.
Q: What's the difference between 3M™ GPT-020F and 3M™ 9088?
A: The 3M GPT-020F is essentially the modern evolution of 3M 9088, designed to offer improved performance and greater production sustainability.
Data sheet
- Brand
- 3M
- Format (width x length)
- 9 mm x 50 m
- Thickness
- 0.202 mm
- Colour
- clear
- Units per package
- 24 rolls
- Status
- B
