3M™ 468MP is a 0,127 mm (130 µm) double-coated transfer tape, more than double the thickness of 3M 467MP and therefore more suitable for irregular and not perfectly smooth surfaces. It features an acrylic adhesive on a polycoated kraft layflat backing (0,10 mm - 26 kg). Excellent shear, temperature, and chemical resistance. Ideal for fixing frames, plates, graphics, and coverings, bonding graphics and decorations, quickly assembling components (medical equipment, durable labels, flexible printed circuit boards), and laminating industrial foam for die-cutting gaskets. Easy to die-cut and process. UL/MIL approved for metals/polycarbonate.
In stock (except sold). Possibility of custom cuts and die cuts.

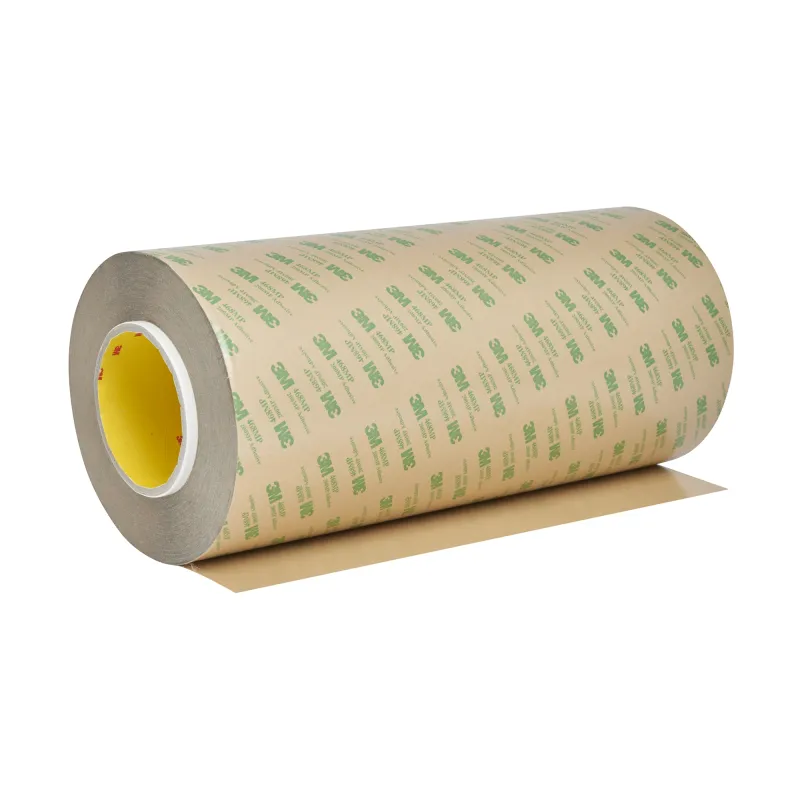

3M™ 468MP Adhesive Transfer Tape 330 mm x 55 m x 0.127 mm
€248.28
3M™ 468MP is a 0,127 mm (130 µm) double-coated transfer tape, more than double the thickness of 3M 467MP and therefore more suitable for irregular and not perfectly smooth surfaces. It features an acrylic adhesive on a polycoated kraft layflat backing (0,10 mm - 26 kg). Excellent shear, temperature, and chemical resistance. Ideal for fixing frames, plates, graphics, and coverings, bonding graphics and decorations, quickly assembling components (medical equipment, durable labels, flexible printed circuit boards), and laminating industrial foam for die-cutting gaskets. Easy to die-cut and process. UL/MIL approved for metals/polycarbonate.
In stock (except sold). Possibility of custom cuts and die cuts.
Shipping Exworks. To arrange transportation, check the technical documents of the product
100% secure payments
3M™ Transfer Tape 468MP is a high-performance double-sided tape designed for industrial applications requiring high shear strength and high temperature resistance.
Thanks to the 200MP acrylic adhesive, this tape guarantees excellent adhesion to metals and high surface energy plastics. The 0,127 mm (130 µm) thickness makes it suitable for less than perfectly smooth surfaces.
Key Features:
- Thin thickness of 0,127 mm (130 µm) for bonding on irregular surfaces.
- Continuous resistance up to +150°C.
- High bond strength and shear resistance.
- Transparent adhesive for a clean appearance.
- Ideal for die-cutting and converting processes.
Technical Specifications
| Property | Value |
| Adhesive Type | Acrylic (200MP) |
| Backing | None (transfer tape) |
| Adhesive Thickness | 0,127 mm (130 µm) |
| Liner Type | Poly-coated kraft paper, 107 µm thick |
| Total Thickness | 0,237 mm |
| Adhesion to Steel (ASTM D3330) | 60 N/100 |
| Temperature Resistance | +150°C continuous, +204°C short-term |
| Color | Transparent |
| Width | 330 mm |
| Roll Length | 55 m |
Advantages
- High-performance acrylic adhesive (200MP): Strong and durable bond to metals and high surface energy plastics.
- Thermal and chemical resistance: Excellent resistance to moisture and solvents. It also maintains adhesion at high temperatures.
- Ultra-thin profile: Ideal for electronic or graphic applications.
- Clean application: No adhesive bleed, transparent appearance.
- Excellent die-cut performance: suitable for custom shapes and automated processes.
Applications and Industries
Typical applications:
- Attaching graphics and plates.
- Bonding metals and plastics.
- Assembly of membrane switches and flexible circuits.
- Industrial lamination and splicing.
Industries served:
- Electronics and Components.
- Household Appliances.
- Furniture and Furnishings.
- Automotive and Transportation.
- Signage and Labeling.
- Industrial Converting and Die-Cutting.
Application and handling instructions
Surface preparation:
- Surfaces must be clean, dry, and free of grease or dust.
- For metals and plastics, clean with isopropyl alcohol before application.
Application:
- Apply with uniform pressure (roller or press) to ensure complete contact.
- Recommended application temperature: +21°C to +38°C.
- Maximum adhesion is achieved after 72 hours.
Frequently Asked Questions (FAQ)
Q: What is the difference between 3M™ 467MP and 468MP?
A: The 468MP has a thicker adhesive layer (0,13 mm), which is excellent for slightly rough surfaces, while the 467MP (0,05 mm) is thinner and suitable for smooth, rigid surfaces.
Q: Can I order rolls in custom widths?
A: Yes, we offer custom cuts from 6 mm up to 1220 mm to optimize your production processes.
Q: Is it suitable for outdoor use?
A: Yes, if protected from direct UV exposure and applied to stable surfaces.
Data sheet
- Brand
- 3M
- Format (width x length)
- 330 mm x 55 m
- Thickness
- 0.127
- Colour
- Transparent
- Units per package
- 1 roll
- EAN-Code
- 5900422034766
- Type of price
- one roll
- Status
- A
